ALDEX Mixed Bed Series

MB-1 MP SC Mixed Bed Resin

Aldex MB-1 MP SC is a highly regenerated mixed bed of a Type 1 strong base, gel anion exchange resin and a strong acid sulfonated polystyrene cation exchange resin, designed to provide ultra-high purity water. The special blend of Type 1 anion exchange resins with nuclear grade cation exchange resins ensure high resistance, low TOC extractables and excellent regenerable capacities for inorganic versus organic ions. Aldex MB-1 MP SC is provided in a 60:40 anion to cation ratio (by volume).

Download Aldex MB-1 MP SC Technical Bulletin (PDF)

Physical Chemical Properties

Polymer Structure:Macroporous styrene divinylbenzene
Functional Group:

Cation
Anion


Sulfonic Acid
Trimethylamine
Physical Form: Spherical beads
Resin Color:

Cation component
Anion component


Tan to brown
Yellow to brown
Ionic Form as Shipped:Hydrogen / Hydroxide
Column Capacity:>0.55 meq/mL
Volume Ratio:

Cation
Anion


40%
60%
Moisture Content: 51 to 66% maximum
Shipping Weight (approx.): 42 lbs per cubic foot
Screen Size:16 to 50 mesh

Recommended Operating Conditions

Maximum Temperature:
Continuous:
Intermittent:

140ºF
180ºF
Bed Depth:24 inches minimum
Backwash Flow Rate:50 to 100% bed expansion
Pressure Loss:25 psi maximum
pH Range:2 to 12
Service Flow Rate:

Working:
Polishing:


1 to 5 US GPM per cubic foot
3 to 15 US GPM per cubic foot

MB-1 MP SC Features

Very low color, taste or odor

Aldex MB-1 MP SC meets the requirements for paragraph 173.25 of the Food Additive Regulation of the U.S. Food and Drug Administration.

Very Low TOC

Nonsolvent sulfonation and special manufacturing processes assure very low TOC leakage.

Superior Physical Stability

90% plus sphericity and high crush strengths together with a very uniform particle size provide greater resistance to bead breakage while maintaining low pressure drop.

Reliability

Aldex Chemical has over 40 years of field usage by thousands of customers demonstrate the reliability of Aldex ion exchange resins, zeolites and other water treatment media.



Safety Information

A material safety data sheet is available for MB-1 MP SC. Copies can be obtained from Aldex Chemical Co., LTD. Aldex MB-1 MP SC is not a hazardous product and is not WHMIS controlled.

Caution: Acidic and basic regenerant solutions are corrosive and should be handled in a manner that will prevent eye and skin contact. Before using strong oxidizing agents in contact with ion exchange resin, consult sources knowledgeable in the handling of these materials.



Pressure Drop

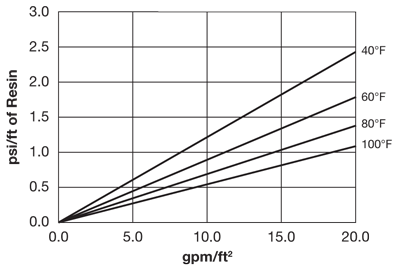

The graph below (Fig. 1) shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.

Aldex MB-1 MP SC

Fig. 1 Pressure Drop vs Flow Rate at various degrees Fahrenheit (F°)

Backwash Characteristics

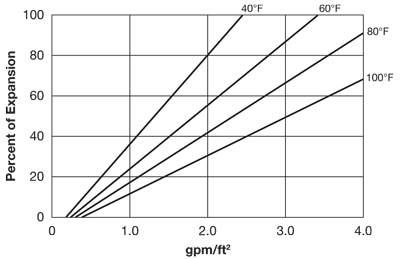

After each cycle, the resin bed should be backwashed at a rate that expands the bed 50 to 75 percent. This will remove any foreign matter and reclassify the bed. Fig. 2 shows the expansion characteristics of Aldex MB-1 MP SC in the chloride form.

Aldex MB-1 MP SC

Fig. 2 Bed Expansion vs Flow Rate at various degrees Fahrenheit (F°)

Applications

Demineralization

Aldex MB-1 MP SC is highly recommended for use in mixed bed demineralizations, wherever complete ion
removal and physical and osmotic stability are required.

The high total capacity of Aldex MB-1 MP SC makes it ideal for applications such as precious metal recovery, rad-water disposal and purification of toxic waste streams. The higher porosity also provides an increased resistance to osmotic and physical shock compared with its gel counterpart Aldex MB-1 SC.

Type 1 anion exchangers have greater thermal and oxidation resistance than other types of strong base resins and can be operated at higher temperatures to ensure low silica leakages. The higher porosity, high total capacity and Type 1 functionality of Aldex MB-1 MP SC make it the resin of choice where the water temperature is in excess of 85°F or where the combination of carbon dioxide plus silica exceed 40% of the total anion and where chlorides and organics represent only a small portion of the ions to be removed on a regeneration basis. At lower regeneration levels or where the removal and elution of organics is of concern Aldex MB-1 SC should be considered.

Aldex MB-1 MP SC and MB-1 SC are quite similar; the major difference between the two is the degree of porosity. The choice between them is not always clear cut. We suggest consulting our technical staff for specific recommendations.

Desilicizers

Sometimes water supplied with low dissolved solids need only be treated for hardness and silica removal. Aldex C-800 operating in the sodium cycle followed by Aldex MB-1 MP SC operating in the H+ / OH- cycle is an effective way of providing low silica, and low hardness water for medium pressure boilers.

High Temperature

Reasonable life can be provided up to approximately 180º F. Both Aldex MB-1 MP SC (H+) and Aldex SB-1 MP SC (OH-) are the most thermally-stable resins available in the commercial market. They are able to operate well beyond temperature limits of other mixed bed resins.

Radwaste

Aldex MB-1 MP SC is ideally suited for radwaste applications requiring removal of radioactive anions, especially when the feed is highly radioactive. Due to its high cross-linked media, it has enhanced resistance to chemical damage caused by ionizing radiation. It is able to maintain its structural integrity up to 1 x 109 rads exposure.

Operating Capacity

The operating capacity of Aldex MB-1 MP SC is based on the anion component and is shown in Table 1. After first exhaustion and regeneration, the cycles will be shorter but that is dependant on how the resin is separated, regenerated and re-mixed. The data is based on the inlet conductivity of neutral pH waters, run to a 1 μS/cm endpoint with sodium chloride (2.5 μS/cm/ppm as CaCO3).

Conductivity
μS/cm
No CO2 or SiO2
5 ppm CO2 or SiO2
10 ppm CO2 or SiO2
2/5
102,515
29,290
17,086
5/12.5
41,006
20,503
13,669
10/25
20,503
13,669
10,251
20/50
10,251
8,201
6,834
50/125
4,101
3,728
3,417
100/250
2,050
1,953
1,864
200/500
1025
1000
976
500/1,250
410
406
402
1,000/2,500
205
204
203

Quality Assurance

Aldex MB-1 MP SC resin is tested by Aldex Chemical for resistivity, total organic carbon, and kinetic performance and will meet stringent UPW performance requirements on these most critical parameters. Aldex will fully support the quality and performance of Aldex MB-1 MP SC resin in UPW applications in order to assure full customer satisfaction with the product as delivered. Typical TOC and resistivity curves for Aldex MB-1 MP SC resin are shown in Fig. 3.

Aldex MB-1 MP SC Quality Assurance

Fig. 3 Resistivity and TOC Rinse Performance

These suggestions and data are based on information we believe to be reliable. They are offered in good faith. However, we do not make any guarantee or warranty. We caution against using these products in an unsafe manner or in violation of any patents. Further, we assume no liability for the consequences of such actions.
